Brand Name : | DACO |
Certification : | SGS |
Price : | USD1.0 / KG for Extruded copper Rods |
Delivery Time : | 5 days for FExtruded copper Rods |
Payment Terms : | TT for Extruded copper Rods |
Supply Ability : | 1000000kgs of Extruded copper Rods |
Production show
1. Extruded Copper Rods
Our esteemed clients can avail from us a wide gamut of Forging
Brass Rods, Extruded Brass Rods which have gained appreciation for
it's international quality standards. Available in various sizes,
thicknesses and specifications, these brass rods are largely used
in various industries. Our competitively priced Forging Brass Rods
are acknowledged for their high tensile strength, durable finish
standards, corrosion resistance and sturdy designs.
Technical Specifications :
· BS:218
· IS3488
· IS:6922
· BS2874 CZ122
· CuZn 38Pb1
· 1.5
Chemical Requirements | CuZn42Pb2 | CuZn40Pb2 |
Copper | 56.5 - 60.0% | 57.0 - 59.0% |
Lead | 0.60 to 2.0% | 1.5 to 2.5% |
Iron | 0.30% max | 0.40% max |
Total Imp. Excl. Iron | 0.20% max | 0.70% max |
Zinc | Remainder | Remainder |
Physical Properties | ||
Tensile Strength | 380 Mpa Min | 40 kg/mm2 Min. |
Elongation % | 25% Min | 18% Min. |
Izod Value | - | 2.0 KJ min |
Fabrication Properties | ||
Capacity for being | ||
Cold worked | Poor | Poor |
Hot formed | Excellent | Excellent |
Hot forgeability rating | 100% | 100% |
Machinability Rating | 80% | 80% |
Suitability for soldering | Excellent | Excellent |
Suitability for Brazing | Good | Good |
Uses |
Forged Components, Industrial Valves, Defense components, Watch Case, Automobile Valves Components |

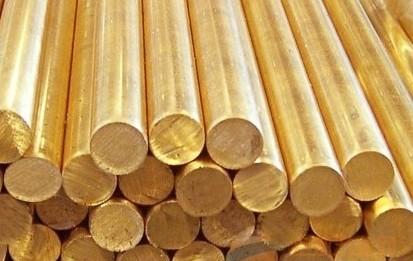

2. Product Pictures
3.Production Features
![]() |
